Series MDU-CL (Classic Design)

Model MDU-CL
Click image to open expanded view

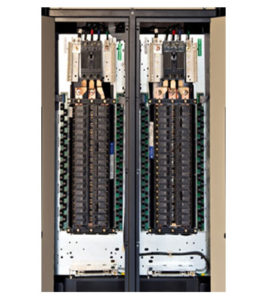

Model MDU-CL (Classic Design)

  • Nema 1 Enclosure w/removable panels)
  • Door-in-door construction ; door locks
  • Top or bottom entry
  • Up to 8 GE Panelboards
  • Up to 8 GE Subfeed CB’s
  • Up to 2 Side Cars for Distribution

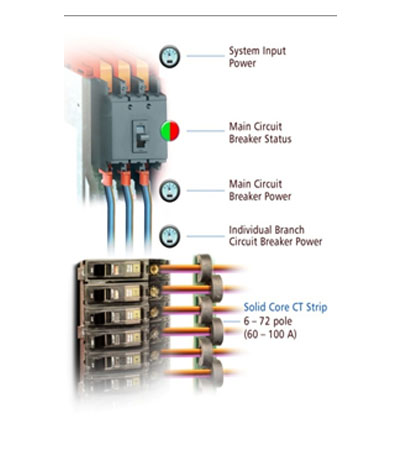

  • Intelligent Monitor with true RMS metering
  • Modbus RTU Communications
  • Transient Network, Surge Suppression, Lightning Arrestor options

Get A Quote


Related Products

Model MDU-HP
(High-Power)


Product Description

Electrical Specs
KVA: 50, 75, 100, 125, 150, 200, 225, 300
Input: 480VAC 3ph 3w + gnd
Output 208/120VAC 3ph 4w + gnd
Frequency 60Hz or 50Hz
Efficiency 98%
